Ace Aquatec Electrical Stunner

Ace Aquatec electrical stunner: U-Shaped Prawn Humane Stunner Universal (A-HSU™):

• Can stun up to 2 metric tons per hour.

• Size of shrimp: 1.5g - 25g.

• Ideal setup: Suitable for use on farms and in processing plants.

• Weight: dry weight 600kg.

• Power supply: 3 Phase power, 40A.

• Secure remote access: Ethernet or 3G/4G/5G.

• Suitable for indoor and outdoor use.

• Automated system with clear touchscreen controls; configurable settings.

• Data logging, secure remote adjustment, and monitoring possibilities.

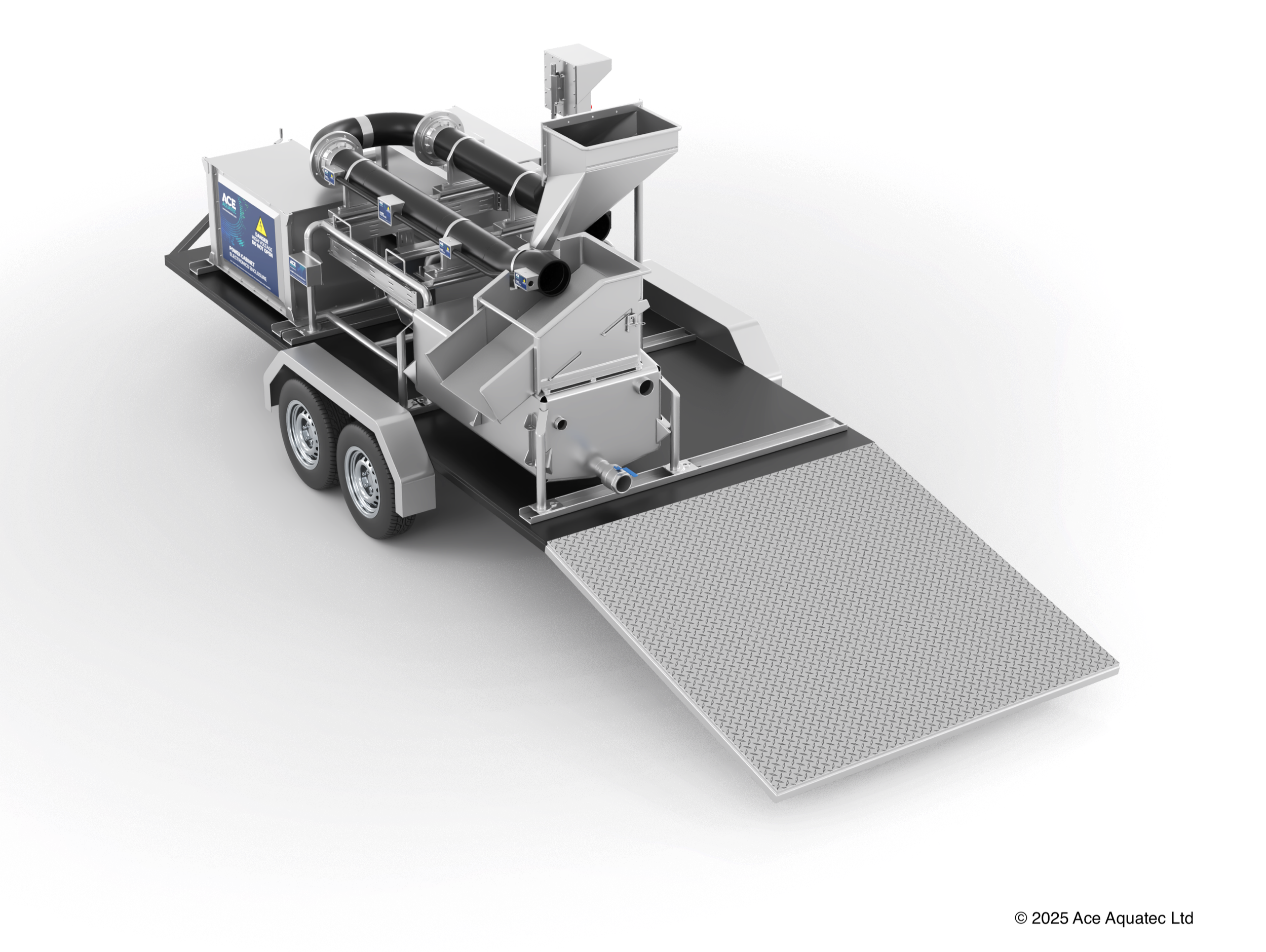

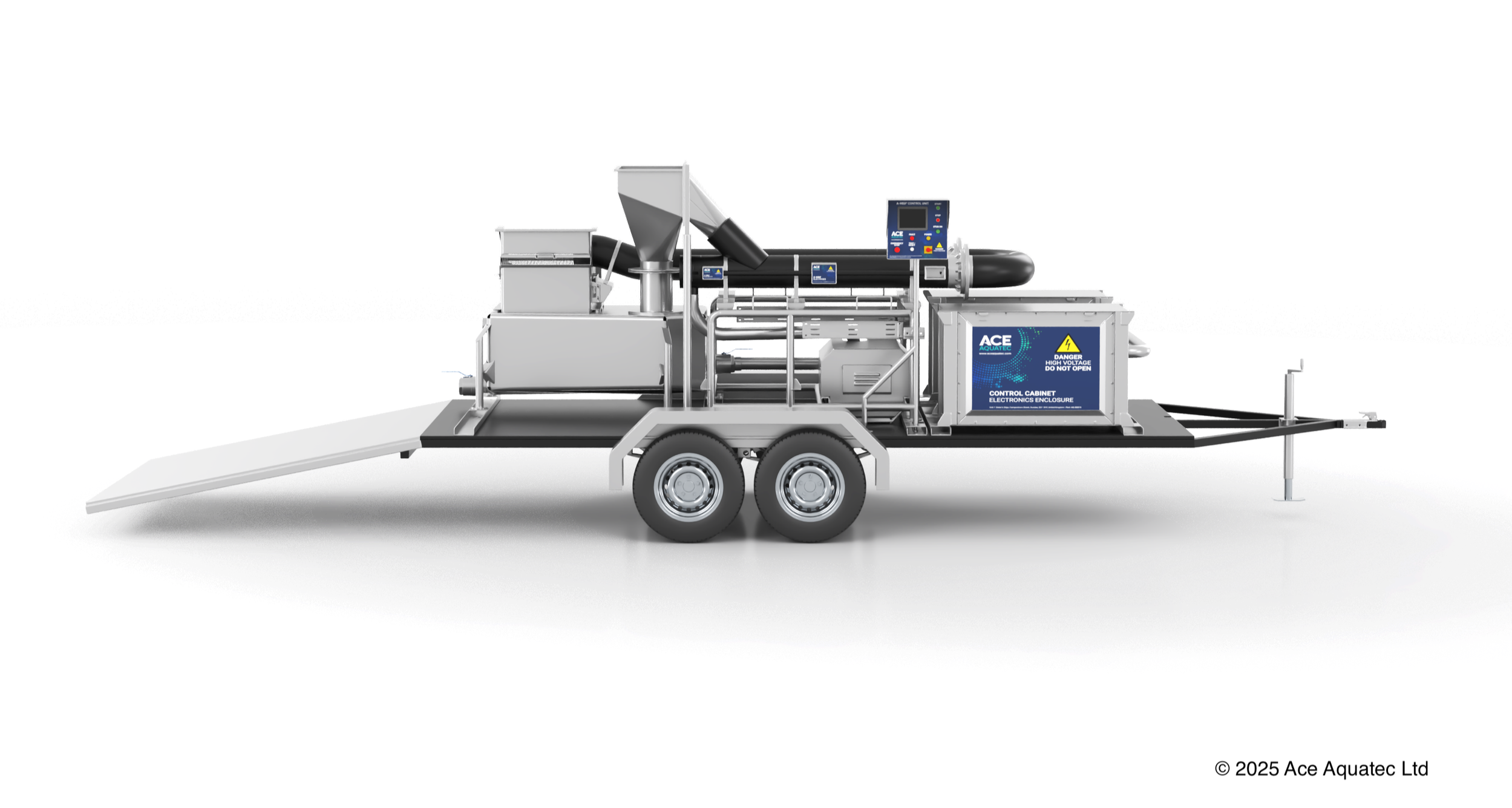

• Self-contained unit on a trailer.

• Designed to withstand robust biosecurity measures and protocols thereby reducing the risk of disease transmission.

• Simple cleaning and disinfection protocol.

• Power management and safety:

  • Multiple passive and active safety systems ensure that in the event of failure or misoperation operator safety and animal welfare are preserved.

  • The active voltage-carrying electrodes are buried deep inside HDPE tubes that prevent accidental access.

  • System earthing and guard electrodes at tube entrances, emergency stops, residual current monitoring, in addition to over-current and under-current systems, shut down the system in the event of error.

  • Contactor and E-Stop function is checked automatically on start-up.
